9 M360 2DDI Y – MEGA 360 & 2D/MDI Y cable

Overview

Overview

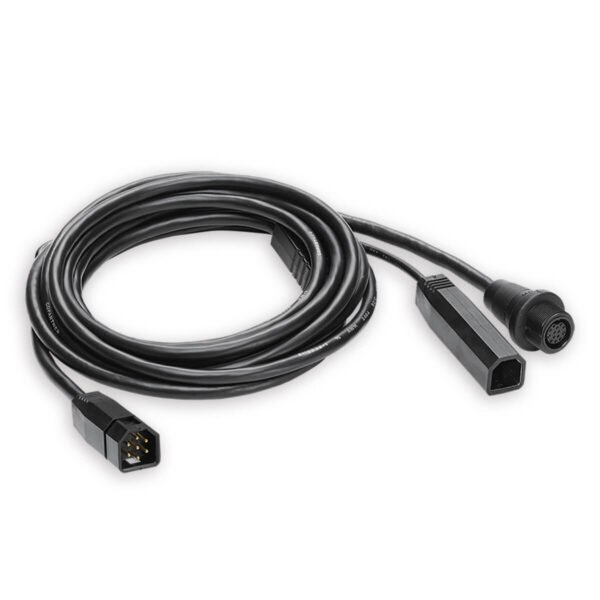

This Y cable allows for the connection a MEGA 360 Imaging transducer and an external 2D / MDI transducer to the same compatible HELIX fish finder.

Features

Feature 1

Compatible with: MEGA 360, HELIX 15 MSI G4N, HELIX 15 MDI G4N, HELIX 12 MSI GPS G4N, HELIX 12 MDI GPS G4N, HELIX 12 MSI GPS G3N, HELIX 12 MDI GPS G3N, HELIX 10 MSI GPS G4N, HELIX 10 MDI GPS G4N, HELIX 10 MSI GPS G3N, HELIX 10 MDI GPS G3N, HELIX 9 MSI GPS G4N, HELIX 9 MDI GPS G4N, HELIX 9 MSI GPS G3N, HELIX 9 MDI GPS G3N, HELIX 8 MSI GPS G4N, HELIX 8 MSI GPS G3N,

Feature 2

Cable Length: 1 foot

Feature 3

Combines MEGA 360 Imaging transducer and 7-pin Dual Spectrum/MEGA Imaging+ transducers into one 7-pin transducer plug for connection to the same, compatible HELIX fish finder.

Feature 4

For use when connecting a MEGA 360 Imaging transducer to a HELIX fish finder, in conjunction with an external 7-pin 2D / MDI transducer.

Feature 5

This cable should not be use to connect a HELIX fish finder with both MEGA 360 Imaging and Built-In MEGA Imaging on Minn Kota trolling motors. Please refer to #720108-1 14 M360 2DDI Y for this specific rigging need.

Feature 6

Is not compatible with Built-in MEGA Imaging transducers on select Minn Kota trolling motors

Feature 7

30″ (76 cm) cable on Dual Sprectrum CHIRP side of cable

Feature 8

10′ (3 m) cable on the MEGA 360 side

Feature 9

1-Year Limited Warranty

Specifications

Country of Origin

UNITED STATES

Single Carton Dimensions

Carton Length (in)

2.13

Carton Length (cm)

5.41

Carton Width (in)

7.5

Carton Width (cm)

19.05

Carton Height (in)

8.5

Carton Height (cm)

21.59

Shipping Weight (lbs)

1.3

Shipping Weight (kg)

0.59

Units per Container [Case Pack]

6
