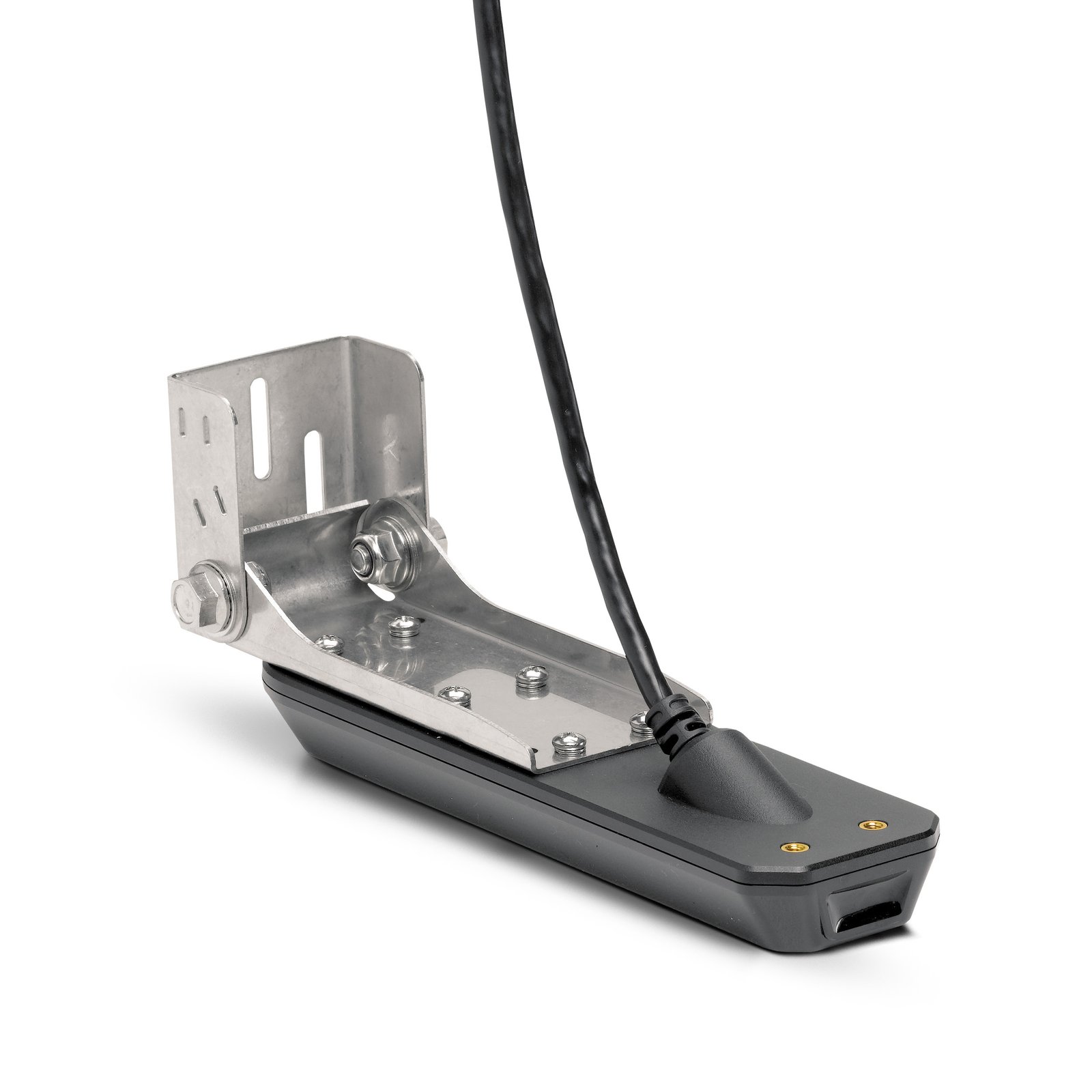

XM 9 HW MSI T – HELIX MEGA SI+, DI+, Dual Spectrum CHIRP w/ Temp Transom Transducer

Overview

Transom Mount, MEGA Side Imaging+, MEGA Down Imaging+ and Dual Spectrum CHIRP 2D Sonar, 800kHz/455 kHz and 1.2 MHz with a CHIRP range of 150-220kHz. Includes built-in temperature sensor

Features

Feature 1

Compatible with: HELIX 12/10/9/8 CHIRP MEGA SI+ G3N, HELIX 15/12/10/9/8 CHIRP MEGA SI+ G4N.

Feature 2

Cable Length: 20 Feet

Feature 3

Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz

Feature 4

Dual Spectrum CHIRP Max Depth: 1200ft (365m)

Feature 5

MEGA Side Imaging+ Frequencies – Max Range (side-to-side): 455kHz: 440-500 kHz – 800ft (244m), 800kHz: 790-850 kHz – 250ft (76m), MEGA SI+: 1075-1150 kHz – 400ft (122m)

Feature 6

MEGA Down Imaging+ Frequencies – Max Depth: 455kHz: 440-500 kHz – 400ft (122m), 800kHz: 790-850 kHz – 125ft (38m), MEGA DI+: 1075-1150 kHz – 200ft (61m)

Feature 7

1-Year Limited Warranty

Specifications

Country of Origin

UNITED STATES

Single Carton Dimensions

Carton Length (in)

3.75

Carton Length (cm)

9.53

Carton Width (in)

14.75

Carton Width (cm)

37.47

Carton Height (in)

9.63

Carton Height (cm)

24.46

Shipping Weight (lbs)

2.8

Shipping Weight (kg)

1.27

Units per Container [Case Pack]

4

Case Carton Dimensions (in)

Case Carton Length

15.25

Case Carton Width

10

Case Carton Height

16.5
